Cooling Systems
Elite Cooling Industries FZC, In joint partnership with WingFan delivers advanced cooling system solutions engineered for reliability, efficiency, and performance across industrial, marine, agricultural, and power generation sectors. Our cooling systems are custom-designed to operate in harsh environments while minimizing energy consumption, emissions, and noise.
Cooling Systems
Our Cooling System Types
We Provide

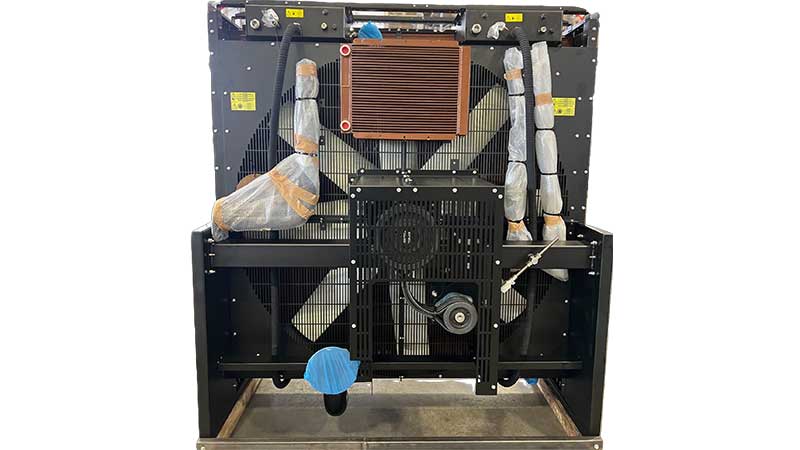

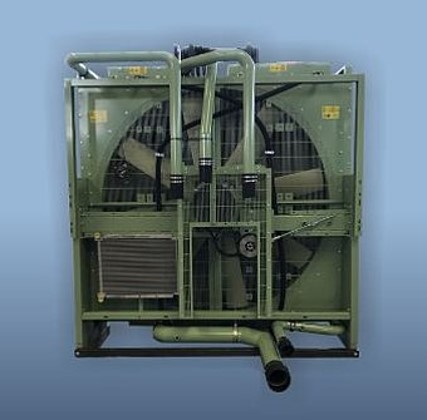

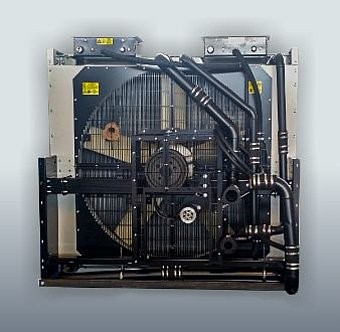

Radiator directly mounted to the engine
The fan is driven directly by the motor shaft and must be designed according to the motor: speed, weight, direction.
Our broad fan portfolio allows for the best solution in even the most challenging applications.
The custom design of the cooler assures the optimum solution
We Provide

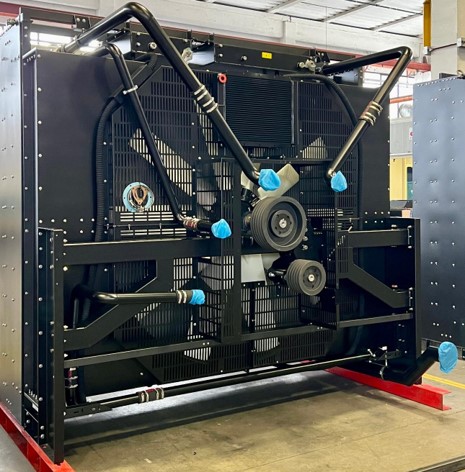

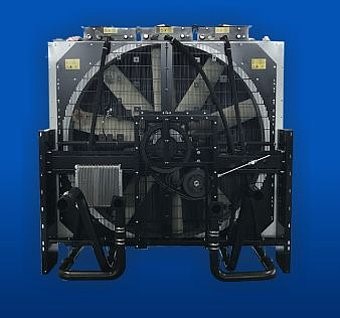

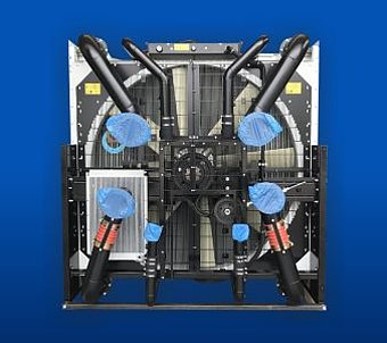

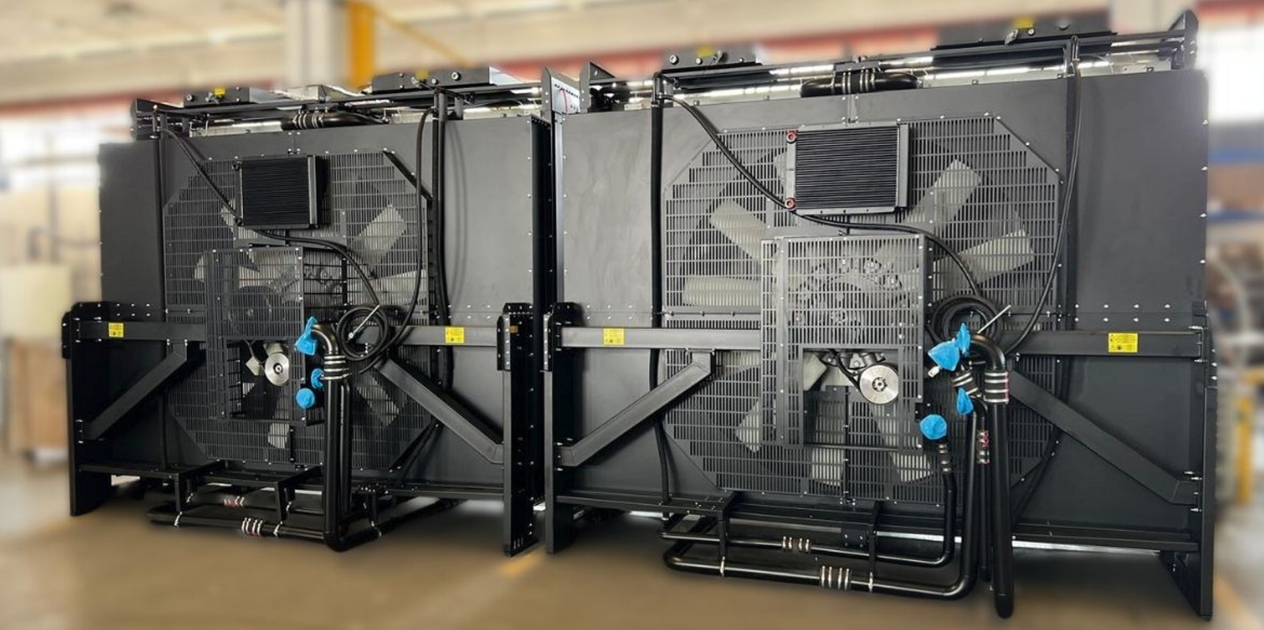

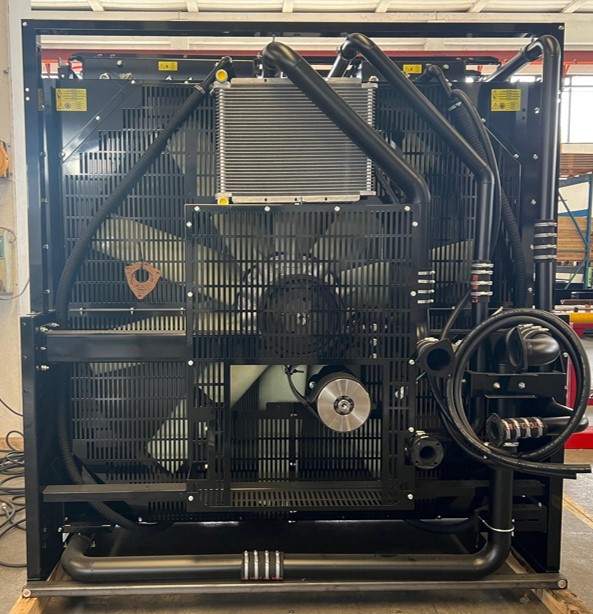

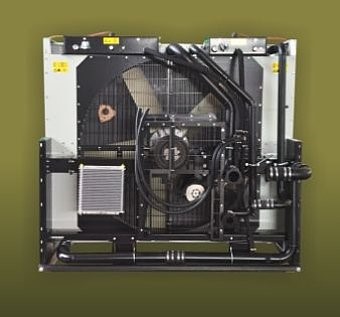

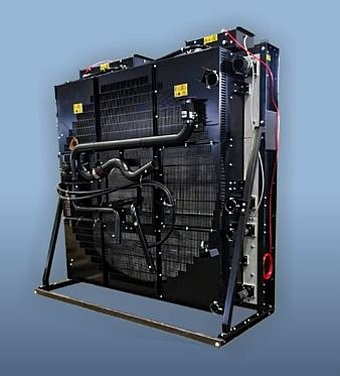

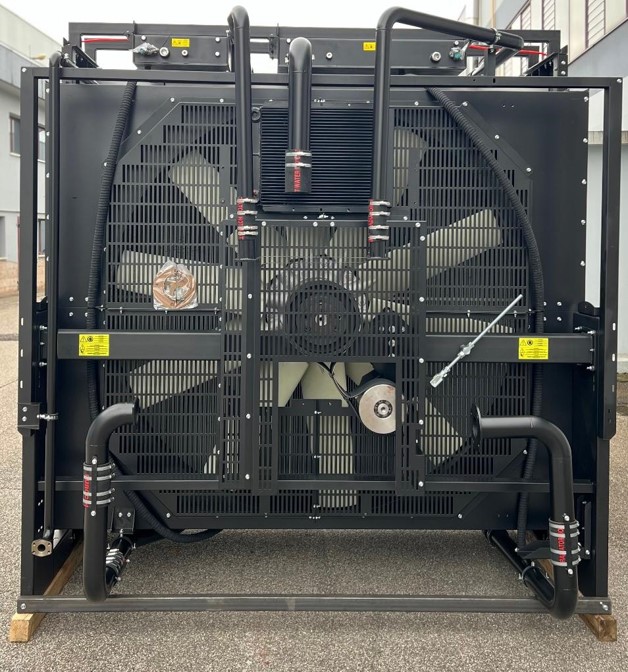

Cooler With Mechanically Driven Fan
The fan is driven by a belt and its speed is fully adjustable through the gear ratio.
It is the most economical and efficient way to find the most suitable solution for the specific application
Engine driven cooling
- Heavy Duty Core Construction – Bar & Plate Aluminum
- Heavy Guage steel frame for coolers and fan drive
- Connection Pipes for easy of installation
- C3 coatings on steel parts
- Steel fasteners
- Power coated on Aluminum Coolers
- Cooling package optimized,designed and manufactured fans
Mechanical Fan Driven -MFD
We Provide

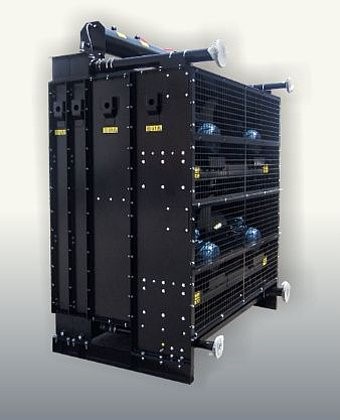

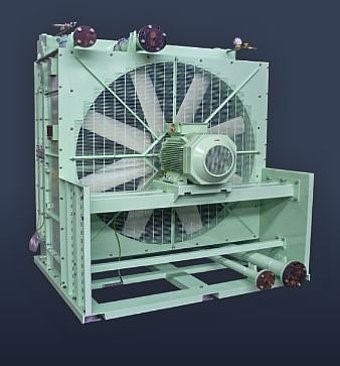

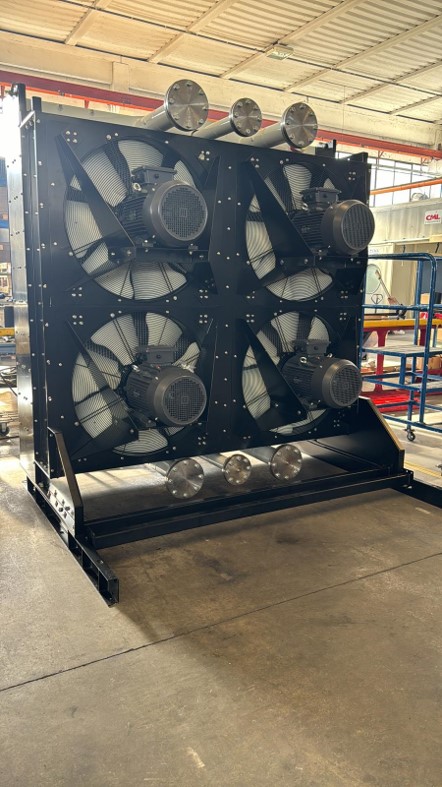

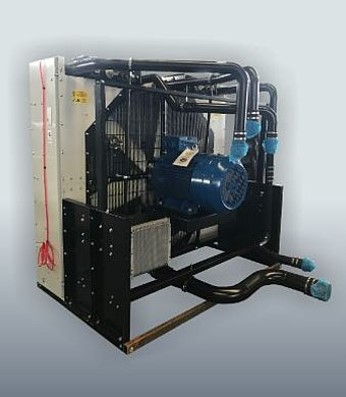

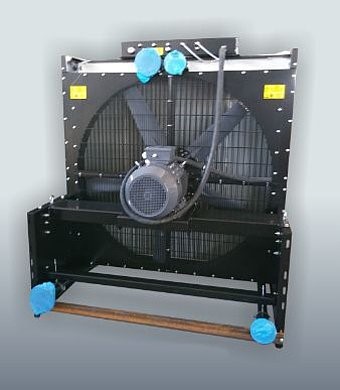

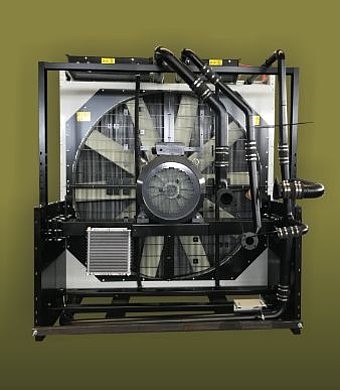

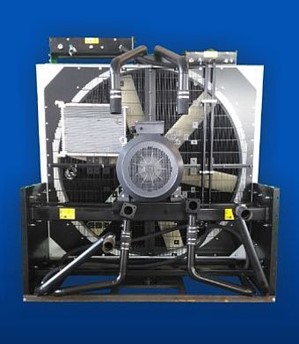

Vertical Radiator with Electric Fan
With this particular arrangement, The Rotation of the fan must be provided by its own electric motor. The Fan speed depends on the frequency of the electric motor and the number of poles.
With this arrangement , the radiators can be installed vertically and separately in a container or outdoor. We are able to optimize this solution with one or more electric motors per cooling package
We Provide
Horizontal Radiator with Electric Fan
Mounted remotely or on top of the container (with power gen inside). The cooling system is directly connected to the engine by dedicated ducts.
With fans up to 2.14m, we can offer the quietest and most efficient custom solution
We Provide
Horizontal Radiator as Table with Electric Fans
Boosting the radiator is usually similar to a remote table, For example on the roof of the genset container. The cooling system is directly connected to the engine via special ducts. The cooler should normally not be installed in the lowest position relative to the motor sockets in order to avoid filling problems or to compensate the system. The fan speed can be adjusted. The composite materials of the fan impeller make it suitable for very low noise installation
We Provide

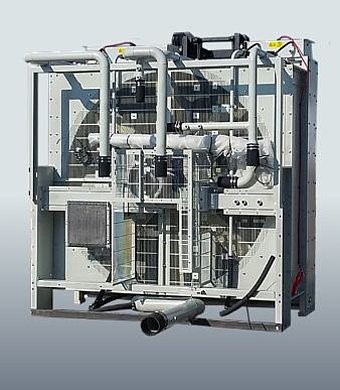

Remote radiator with heat-exchangers
Includes two cooling circuits:
1.Cools the engine body
2.CAC with heat exchangers near engine
This circuit cooler can be placed remotely. We can provide the heat-exchangers and accessories (pumps, hoses, pipes, …)
