Axial Fan
Elite Cooling Industries FZC, In joint partnership with WingFan delivers advanced Axial Fan engineered for reliability, efficiency, and performance across industrial, marine, agricultural, and power generation sectors. Our Axial Fan systems are custom-designed to operate in harsh environments while minimizing energy consumption, emissions, and noise.
Axial Fan Systems
Our Axial Fan System Products

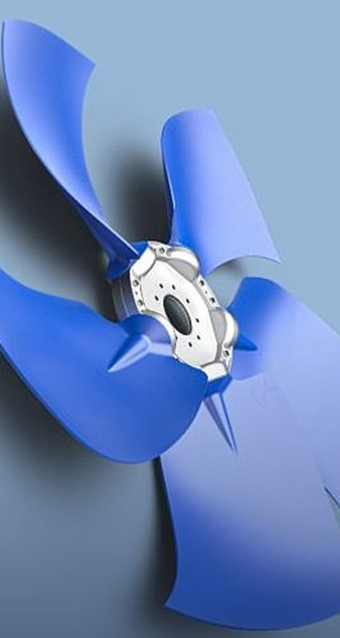

S6Y axial fan
Broad blade design with sickle shape for performances at optimum efficiency. Diameter range 604,2 mm – 1140 mm.

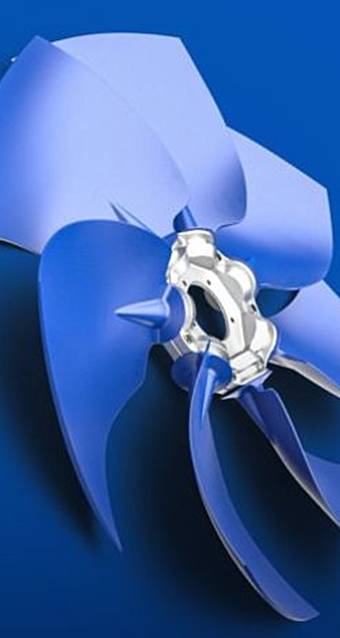

S4Z axial fan
High performance at low rpm ensures low noise operation. Powerful for engine and industry cooling. For ⌀ up to 937,7 mm

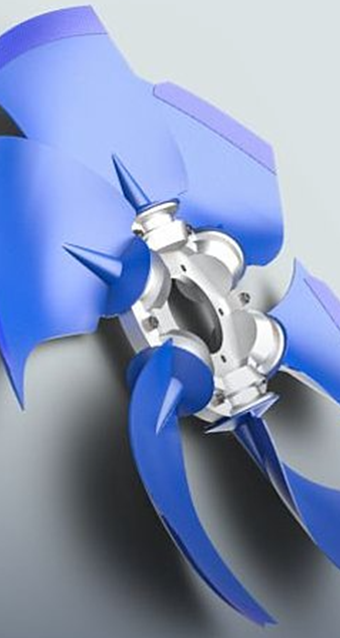

S2Z axial fan
The sickle blade profile S2Z is a remarkably capable option for applications with high pressure requirements. Diameter range 352,1 mm – 728,1 mm.

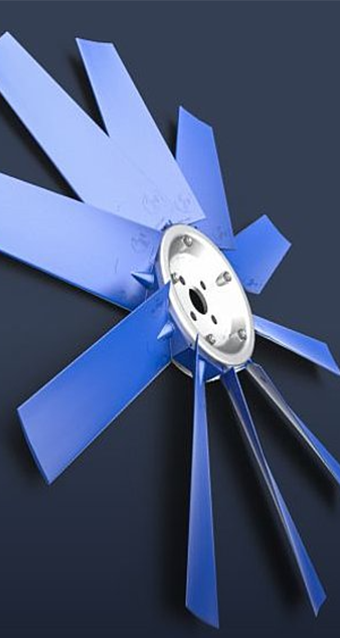

P3H axial fan
Many different applications can be fitted with the versatile P3H fan series for efficient cooling. For ⌀ up to 750,6 mm.

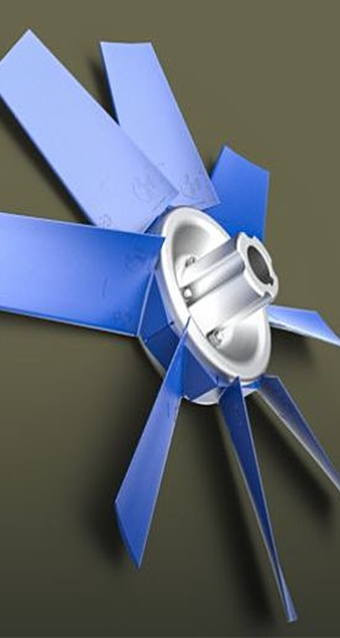

P2H axial fan
Its compact dimensions make it a perfect solution for challenging requirements in modern machine designs with limited space. For ⌀ up to 547,6 mm.

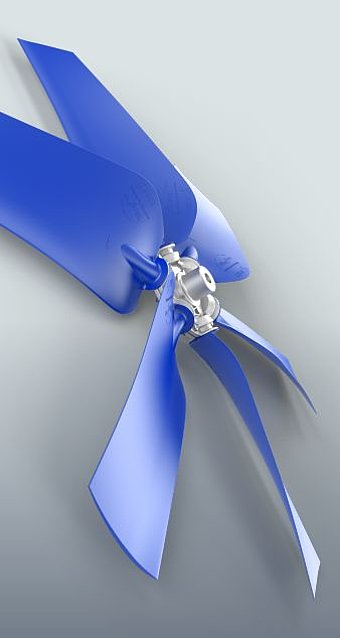

EDGE5 axial fan
Lightweight and highly efficient, designed for HVAC/R applications. For ⌀ up to 1357 mm.

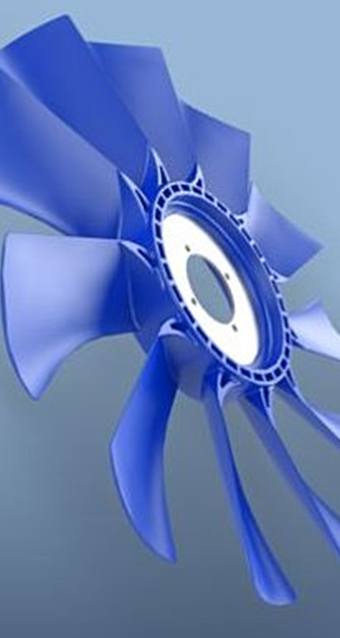

VS11 One-Piece fan
We can deliver the economic benefits of one-piece fans with an optimised solution. Diameter range 476 mm – 635 mm.

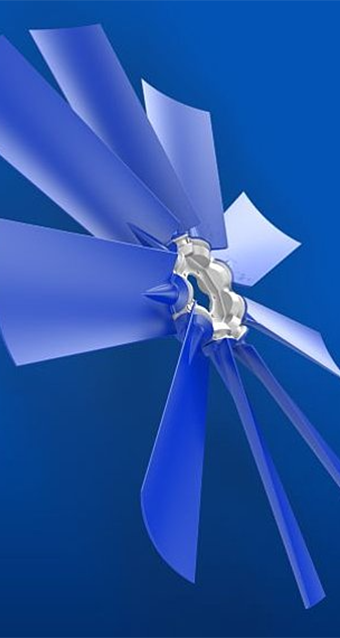

K7Z axial fan
Very compact axial dimensions, durability and the ability to reverse the fan rotation to clear fouled radiators with a maximum fan diameter of 1253 mm.
VS05 One-Piece Fan with bi-metal clutch
Custom-developed fans for your specific needs. Diameter range 381 mm – 580 mm.

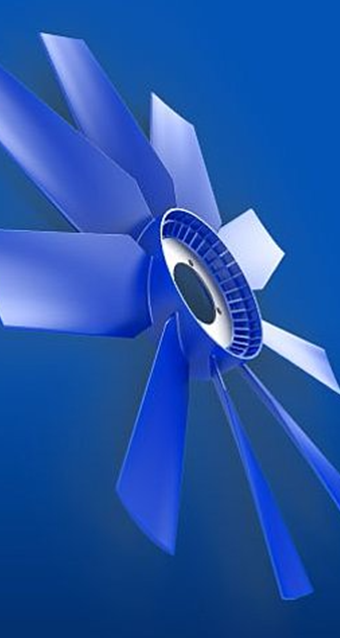

VP4 One-Piece fan
For high volume applications, we can provide you with our know-how to custom-develop fans to your specific needs. Diameter range 304 mm – 724 mm.

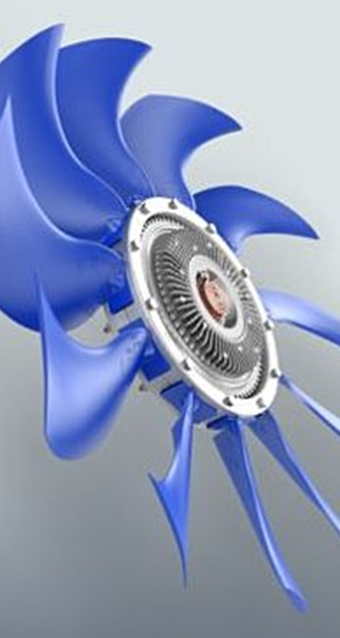

S1H axial fan with bi-metal clutch
WingFan has designed special hubs to fit perfectly onto our clutch options and minimizing the overall axial depth. For Ø up to 618 mm.

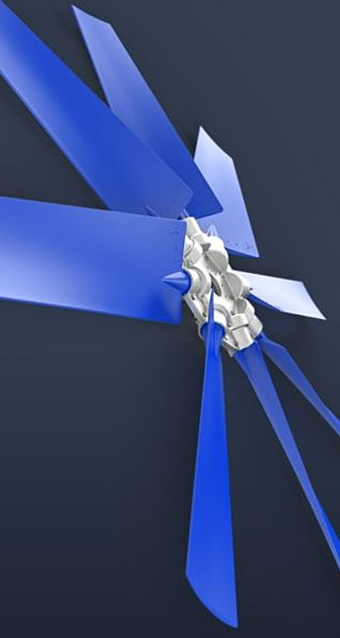

P9T axial fan
The most robust fan in the WingFan range has the performance to cool the most powerful engines with a maximum ⌀ of 2144 mm.

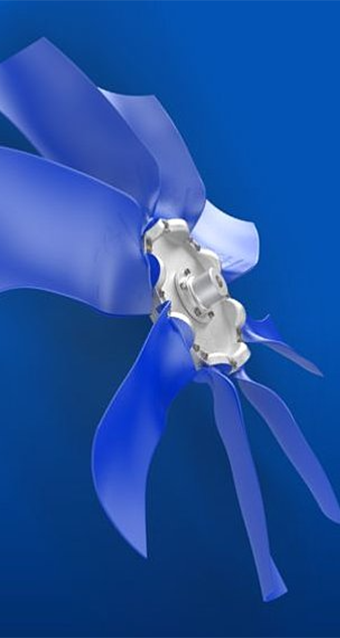

S68Y axial fan
High pressure fan optimized for Tier 4f and STAGE V engine cooling. For ⌀ up to 1280 mm.

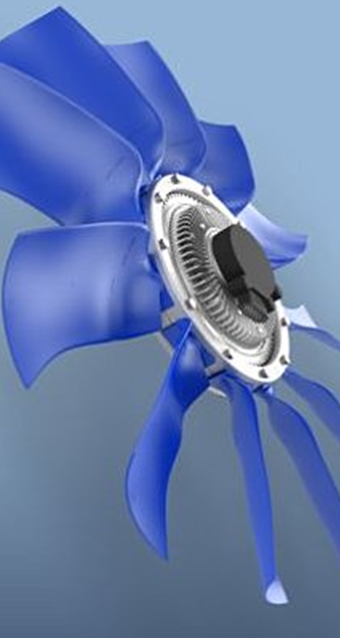

S13H axial fan with visctronic clutch
Highly efficient axial fan + clutch combination with very compact dimensions actively contributes to fuel saving and minimizing fan noise. For Ø up to 662,5 mm.

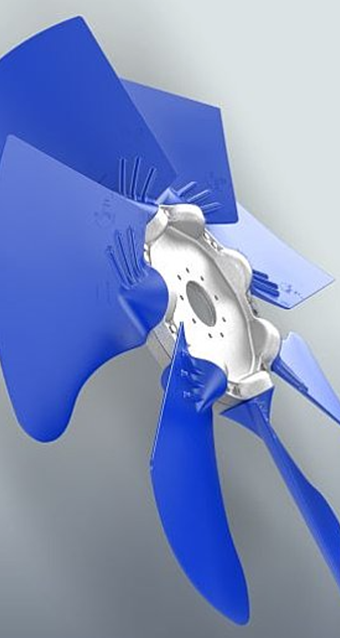

S45Y axial fan
The S45Y performs at its best in combination with cooling packages requiring high static pressure and restricted space. For Ø up to 951 mm.

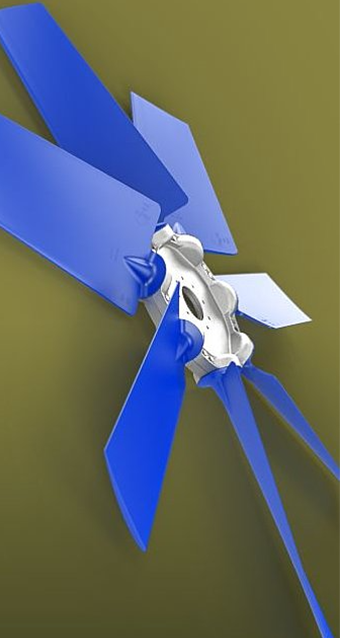

P8Y axial fan
The high efficiency of the P8Y measurably reduces the fuel consumption while providing ample cooling airflow at full engine power. For Ø up to 1390 mm.

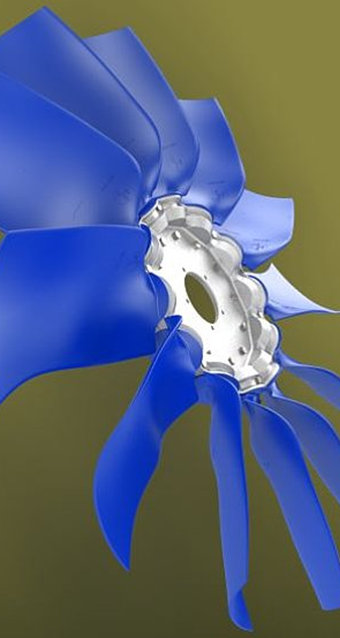

S38Z axial fan
The class leading static pressure and airflow of the S38Z at lower rpm minimizes the power draw from the engine while delivering the maximum cooling airflow. For Ø up to 943 mm.

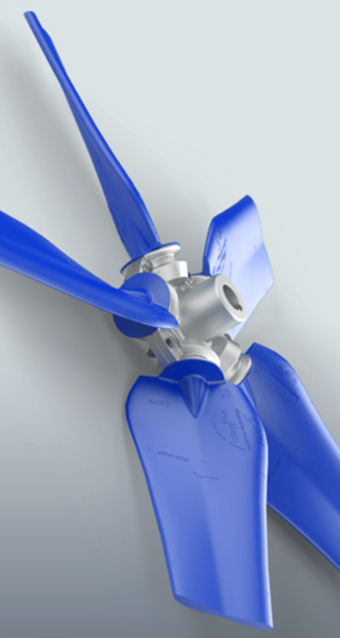

FLIP5 axial fan
New benchmark on the market for reversible airflow. For ⌀ up to 1185 mm.

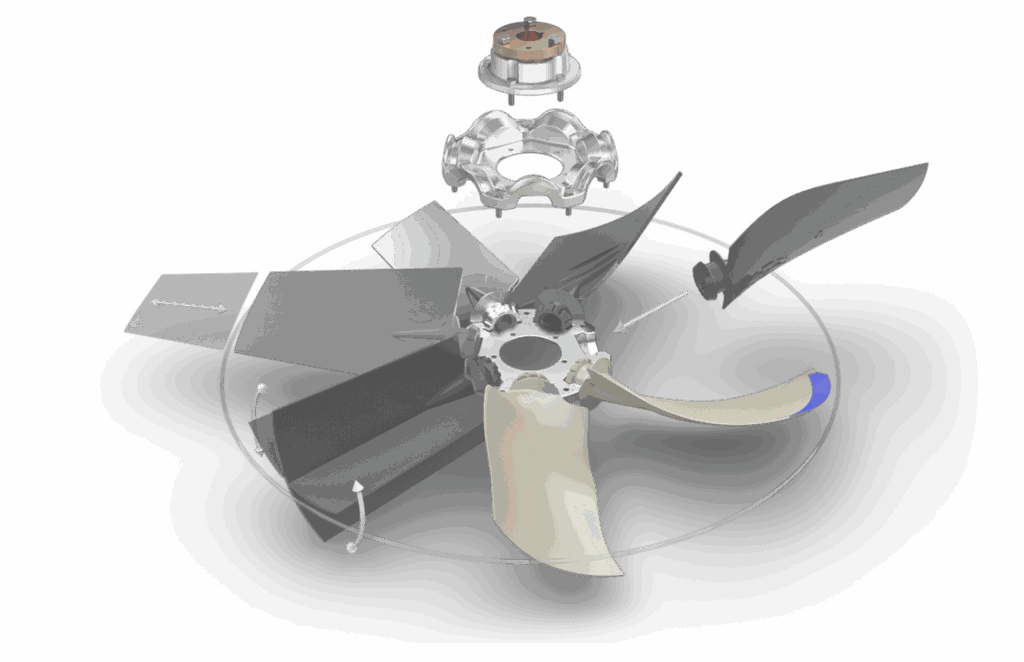

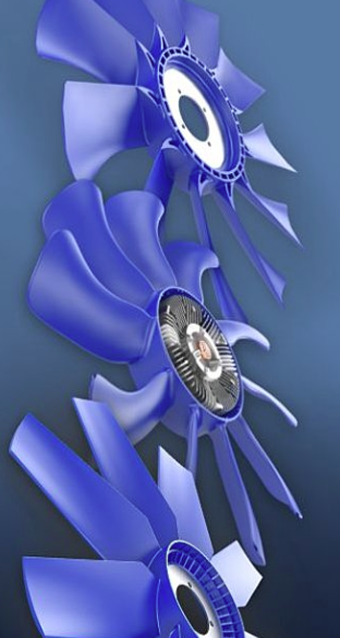

Smart Configuration Technology
Smart Configuration Technology
Blades, hubs, center bosses, clutches, all kinds of mounting options and materials – all working together for you.
Remarkable Versatility for Demanding Application
The Main components of our Assembled fans are the blades and the hubs. In most cases a Center boss or bushing is added to mount the fan. The configuration possibilities of the extensive modular component system procides the following advantages
- Customizable to any size required
- 30+ hubs and 24+ Different Blade-profiles
- Short Developing / Protype timelines
- Fully Adaptable due to all mouting options
- Quick Series Delivery
- Highly Experienced in aftermarket and spare parts

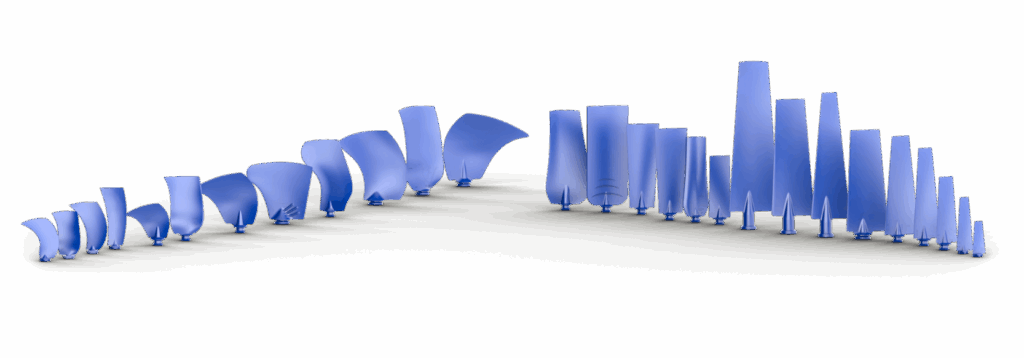

Blade Profile
The Blade is always the important components of a fan
AISI 316 | UNS S31600
The new CorFree Stainless Steel Fan provides the following advantages:
- Corrosion resistant
- High temperature resistant (F400)
- Marine grade
- Very good stability against chlorine media and non-oxidizing acids
- Withstands up to -85°C / -121°F
CorFree Stainless Steel Fan
Axial fan series designed for fire and high temperatures – F400 certified. For ⌀ up to 1002 mm.

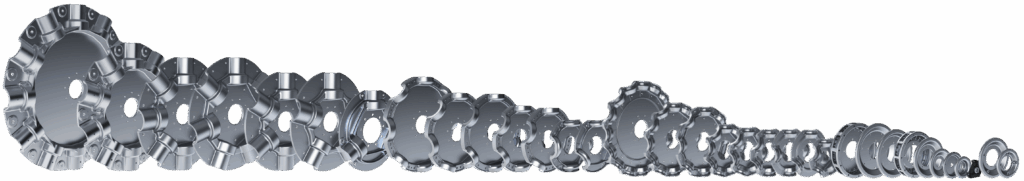

Types of Hubs
- Light Duty
- Medium Duty
- Heavy Duty
- Extreme Duty
- Special Hubs for individual requirements
Special Hubs for Individual Requirements
Our Wide range of diecast aluminum hubs offers a flexible platform to mount various number of blades and blade types for light duty stationary fans as well as extra heavy duty mobile cooling fans. Special high strength gravity die cast hubs and even steel hubs can be configured for the most demanding operating environments

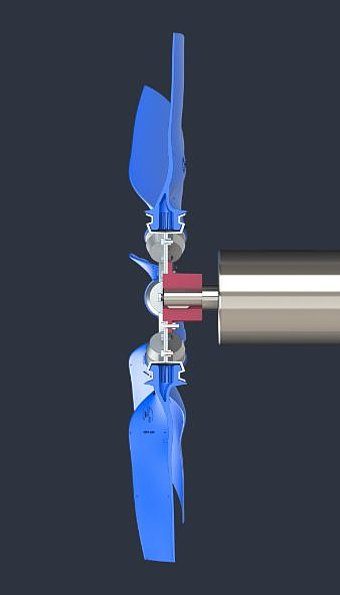

Mounting options
Fully adaptable due to all mounting options
One Piece Fan - Unique solutions
For high volume applications, we can provide you with our know-how to custom-develop fans to your specific needs. Working closely together, we can deliver the economic benefits of one-piece fans with an optimised solution.
The mounting of the one-piece fan can be configured flexibly with varying BCD on inner plates with metal or plastic inserts.
Industries & Application We Serve
Heat exchanger
Forest Harvester

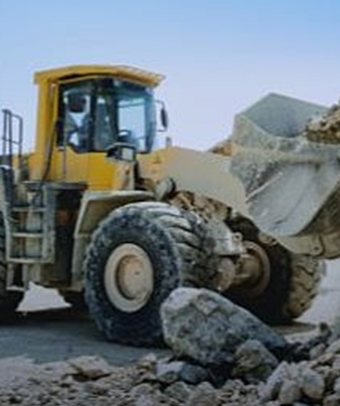

Wheel Loader

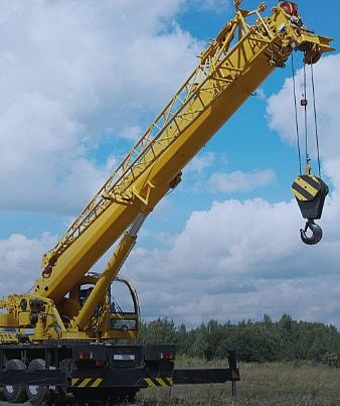

Lifting Cranes

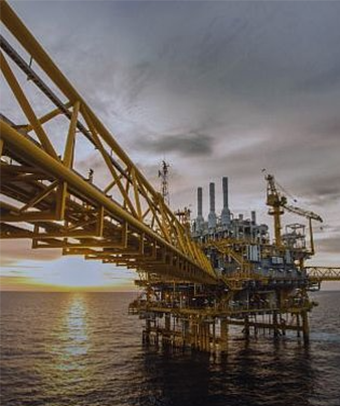

Oil Rigs & Wells

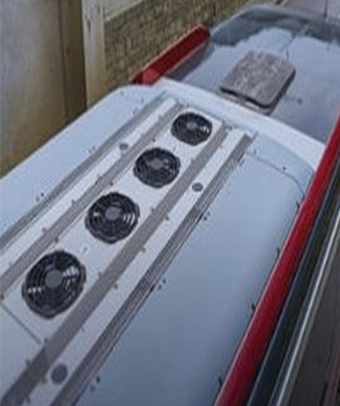

Bus Air Conditioning

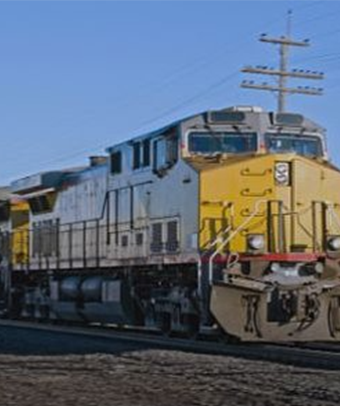

Rail applications
Agricultural Tractors

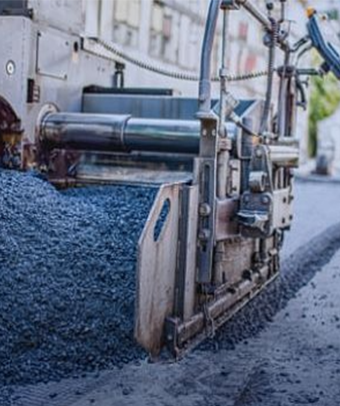

Paving machine

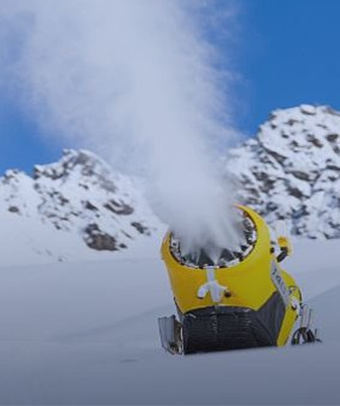

Snow cannon Machine

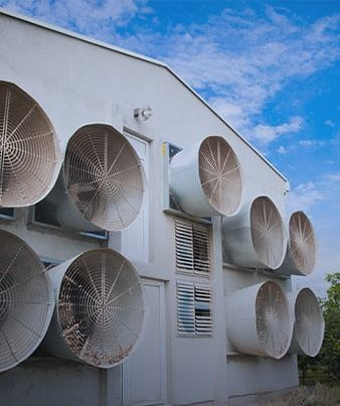

Livestock Ventilation

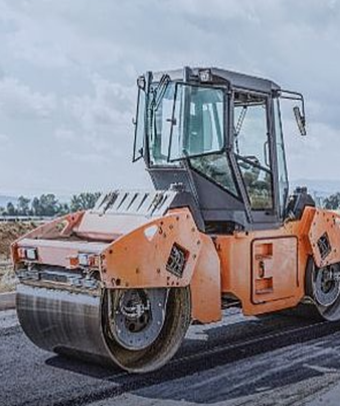

Compactor & Roller

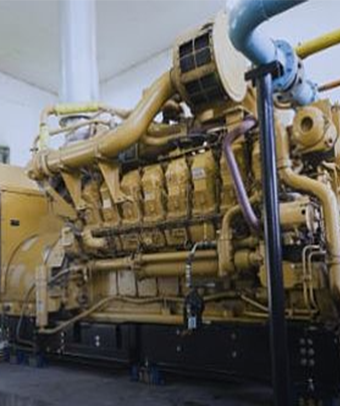

Stationary Gen-sets
Snowcat Machine
Forage harvester
Skid-Steer Loader
Telehandler Machine

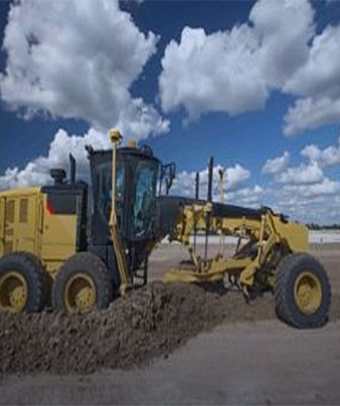

Grader Machine

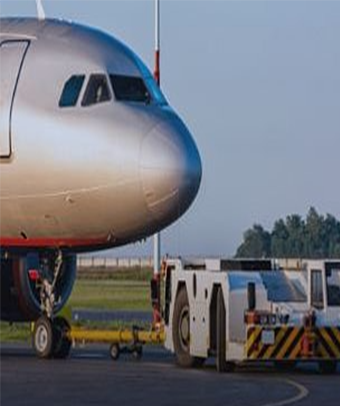

Airport Tow Truck
Combine Harvester

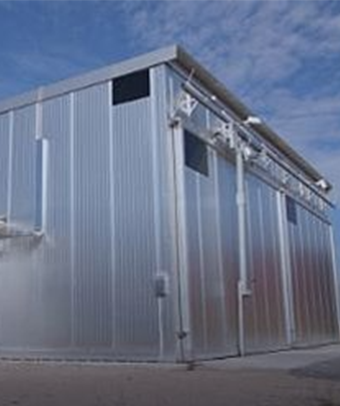

Wood Drying Kilns
Hovercraft Automobile

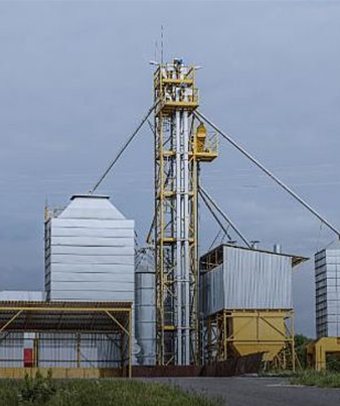

Grain Dryer Industries
Earth Moving Machineries
Heavy Duty Trucks

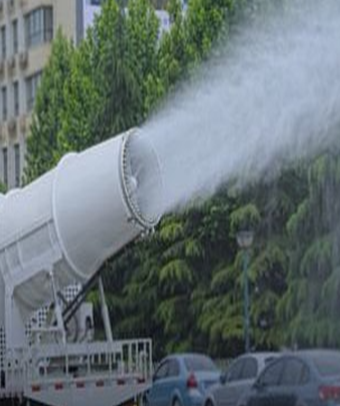

Fog Cannon / Mist Cannon
Marine Industries

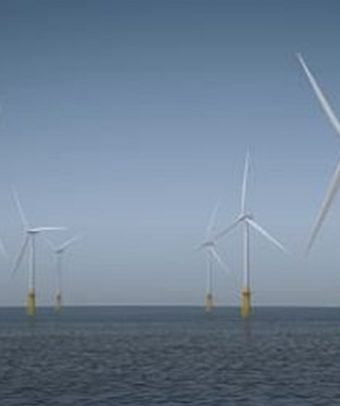

Wind Power Industries

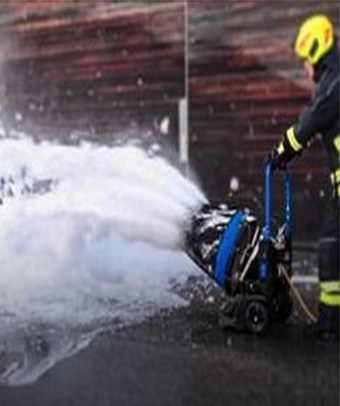

Foam Generator

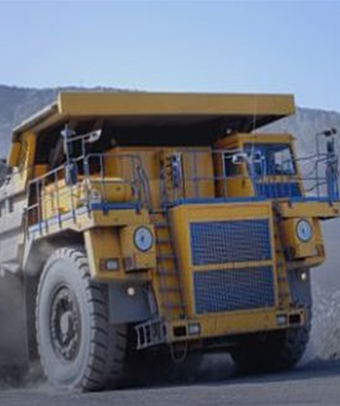

Mining Dump Truck

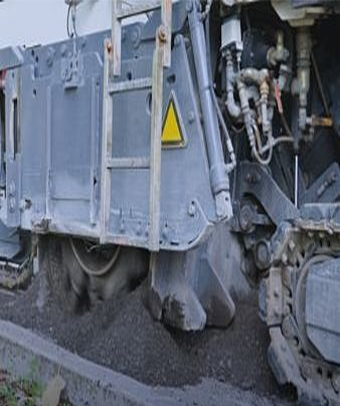

Cold Milling Machine

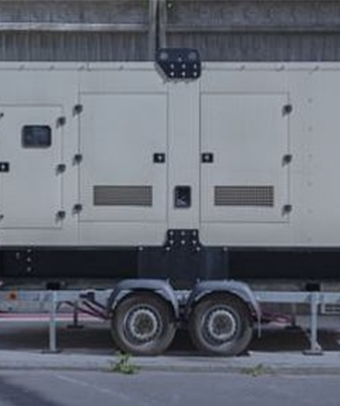

Portable Gen-Sets

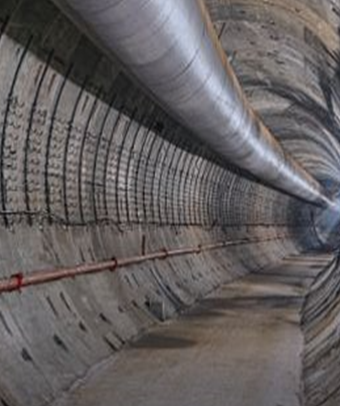

Mining Industries

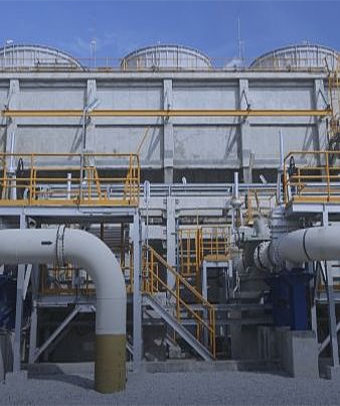

Cooling Tower

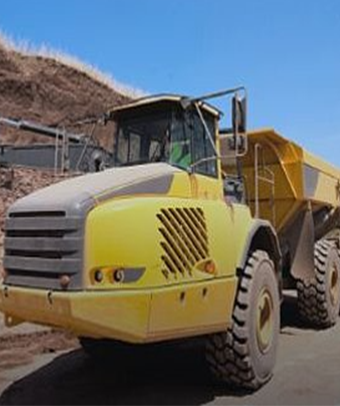

Articulated Dump Truck
Heavy Duty Bulldozer

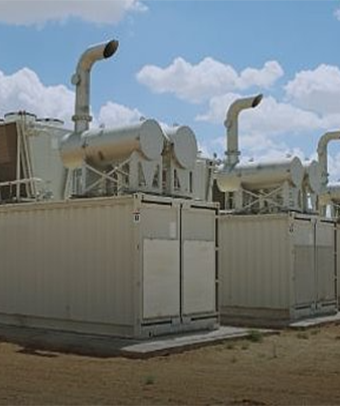

Stationary Compressors

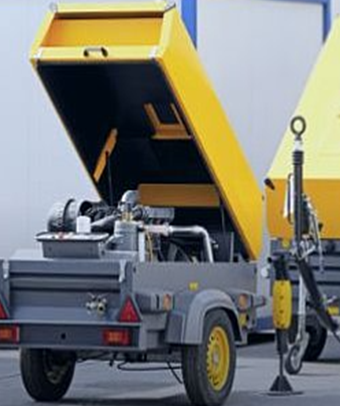

Portable Compressor

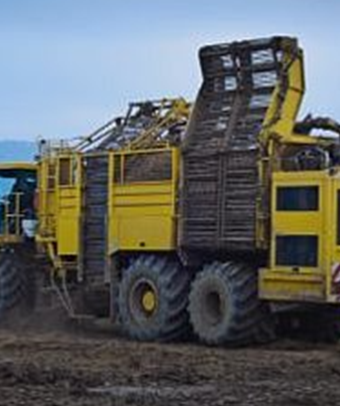

Sugar Beet Harvester
